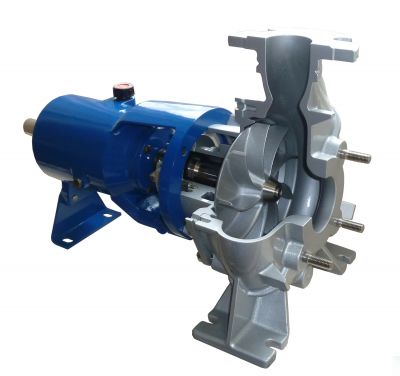

The SR vortex pump, series RC, is a high quality non-clogging resessed impeller centrifugal pump in a modular construction with connections according to ISO 2858-5199. Available in sizes from discharge connection DN32 to DN250.
Flanges according UNI EN 1092-1 PN 10.
Free passage (depending on the pump size) up to a maximum of 150 mm.
Our RC pumps are equipped with a weighted pump shaft and bearings. The complete range is covered by the use of four bearing bracket sizes. The pump cover is also cleverly designed; there is only one pump cover for all possible shaft seals.
Our RC vortex pump series is available in the construction forms as shown below.
All these designs are also available in Atex version zone 1 and 2.
