RN end suction pump according EN 722

+31(0)528 - 24 17 48 Proffesional advise

RN end suction pump according EN 722
Home / Products / Centrifugal pumps / RN end suction pump according EN 722

Our RN centrifugal pump with closed impeller is according to standard EN 733. This series is available in pressure connection sizes from DN32 to DN150. The RN series is used for non-corrosive liquids with a maximum of solid (floating) parts of 0.2%. Connections according to UNI EN 1092-2 PN10.

The closed impeller guarantees optimum efficiency and, due to its wide range of applications, is available in four different designs as shown in the image below.

The RNB, RNL and RNV can be carried out in Atex zone 1 and 2.

Extra information

Characteristics

- High-quality series of single-stage centrifugal pumps in cast iron GJL200 or bronze G-Cu Sn 10.

- Available in four different construction versions.

- Shaft sealing possible with mechanical seal or stuffing box packing.

Technical properties

Maximum capacity: 480 m3/h

Maximamum head: 90 mlc

Maximum system pressure : 10 BAR

Max. medium temperature: 130° C

Application

- For general industrial, civil or agricultural applications.

- For fire-fighting sets or sprinkler installations

- For air conditioning, heating or cooling installations

- For irrigation applications

RN sectional

RN with bearing bracket with oil lubricated bearings. The hydraulic components are designed to withstand the toughest possible mechanical stress. The pump cover is provided with guide ribs which prevents turbulence in the area around the shaft seal and thus optimizes the reliability of the pump.

Why u would
choose this product

Robust and flexible

Robust pump in various designs

High efficiency, low cost

Professional industrial high efficiency pump with a favorable price.

Standardized pump

This standardized pump is interchangeable with all pumps acc. EN 733.

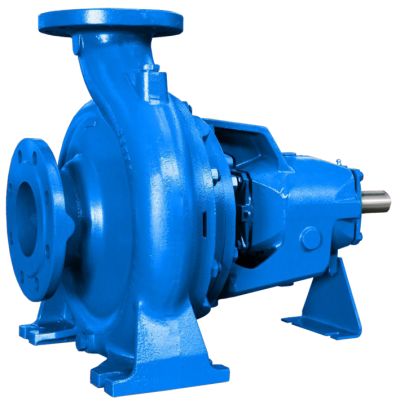

RN end suction pump according EN 722 tekening
