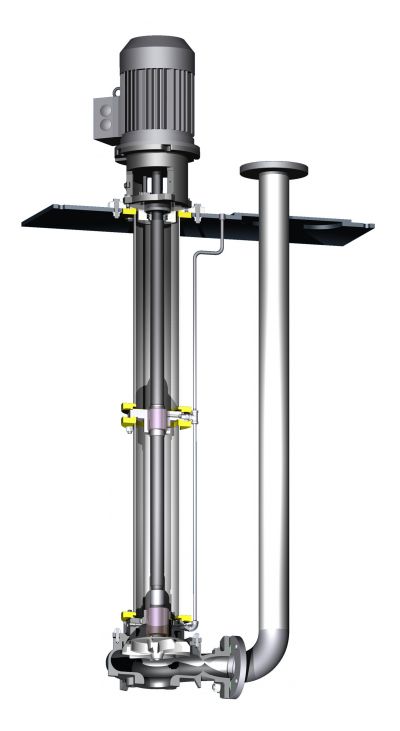

The vertical construction is possible for all hydraulic variants produced by Salvatore Robuschi: in this way it is always possible to use the correct impeller based on the pumped liquid. Various systems are available for lubricating the bearing bushes. It is possible to supply the shape and dimensions of the base plate, the position of the discharge pipe and the column length with custom made dimensions. This allows designers and users to easily install these pumps, also to replace existing pumps. These pumps can be fitted with a suction strainer and / or tailpipe (extension).
View the animation of the operation by clicking on this link.
Standard execution in cast iron or AISI 316 SS (welded parts in AISI316L).
Executions on demand: SAF 2205, SAF 2507, AISI 904L, SANICRO 28.
Further special alloys are available according to technical dept.’s approval.
Bearing bushes in bronze, rubber, special PTFE, silicon carbide or Vesconite.
The complete range is available in Atex zone 1 or 2.
